New Redcat Racing Vertex-10 Crawler Platform

Press Release From Redcat Racing:
www.redcatracing.com

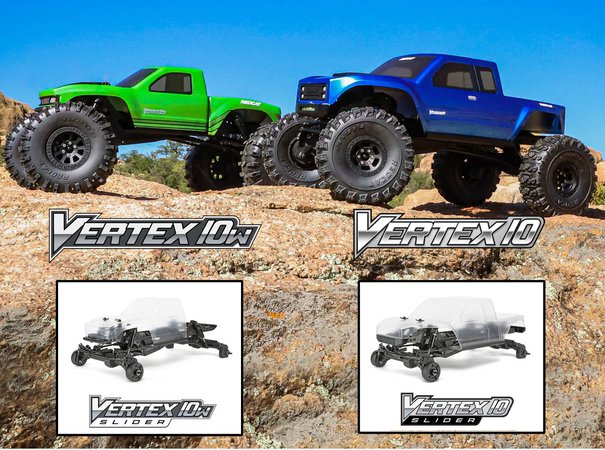

Redcat proudly unveils the all‑new Vertex 10 platform, introducing four distinct models that redefine precision crawling performance: the Vertex 10, Vertex 10 Wide, Vertex 10 Slider, and Vertex 10 Wide Slider.

Each model is engineered from the ground up around lightweight carbon‑fiber construction, high‑clearance geometry, and advanced suspension design, delivering the perfect balance of strength, responsiveness, and control. Together, they form a complete crawling ecosystem built for every driver, from performance-focused Ready-to-Run to builder‑ready customization.

The Vertex 10 family represents Redcat’s next evolution in crawling performance. Each model is tuned for a different kind of driver, but all share the same DNA of precision, confidence, and control.

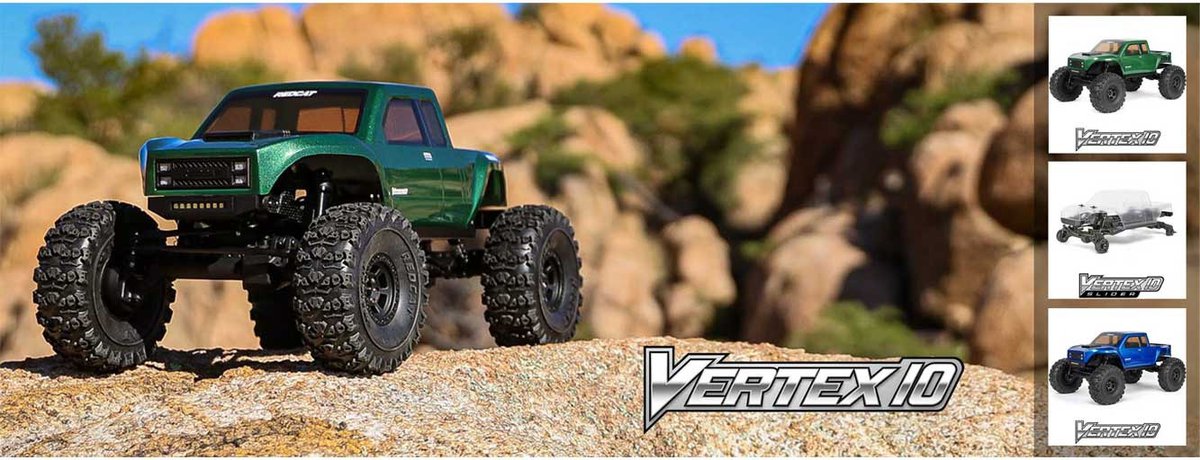

Vertex 10 - Precision‑Built for Technical Mastery

The Vertex 10 is engineered for drivers who thrive on finesse, accuracy, and tight‑line crawling. Its 204 mm hex‑to‑hex width gives it a natural advantage on competition‑style gates and narrow terrain. The 3 mm carbon‑fiber chassis keeps weight low and rigidity high, while the 316 mm wheelbase strikes the perfect balance between breakover performance and stability.

Air‑emulsion shocks with aluminum bodies, 40 wt oil, and 10 mm 2 × 1.2 mm hole pistons deliver smooth, predictable suspension response. Power comes from the Hobbywing 2812 1700 KV brushless outrunner and HW WP‑10BL60 Crawler RTR ESC, paired with the Hexfly HX‑50BL 50 kg brushless servo. A 20 % overdrive split (54.64:1 front / 66.79:1 rear) gives sharp steering response and precise front‑end pull—ideal for technical crawling.

Stable, agile, and precise, the Vertex 10 is built for drivers who want to pick perfect lines and push their skill to the limit.

Vertex-10: $499.99

Vertex 10 Slider - Lightweight, Low‑Profile, Builder‑Ready

The Vertex 10 Slider delivers premium performance in a builder‑ready configuration. Equipped with high‑clearance portal axles, carbon‑fiber components, and a low‑profile body, it’s built to conquer tough terrain with confidence and style.

Its motor‑forward configuration, high‑clearance rear links, and 10‑degree skid angle improve breakover and off‑road capability. Multiple battery mounting options support various pack sizes and balance preferences, while the 3 mm carbon‑fiber ladder frame ensures rugged, long‑lasting integrity.

Heavy‑duty portal axles feature a 3:1 gear ratio, high‑position hypoid‑cut ring and pinion gears, and weighted metal front portal boxes for improved traction and balance. Double‑CV joints and high‑steer axles provide 58 degrees of steering angle, while oil‑filled air‑emulsion shocks deliver smooth suspension response.

The lightweight body sits 15 mm lower than the Vertex 10 RTR, reducing the center of gravity and improving handling. Fairlead and LED‑ready bumper mounts are included (LED light bar RER43580 sold separately).

The Vertex 10 Slider arrives fully assembled as a 1:10‑scale chassis with an unpainted body and decals included, ready for builders to install their preferred electronics, wheels, and tires.

Vertex-10 Slider: $369.99

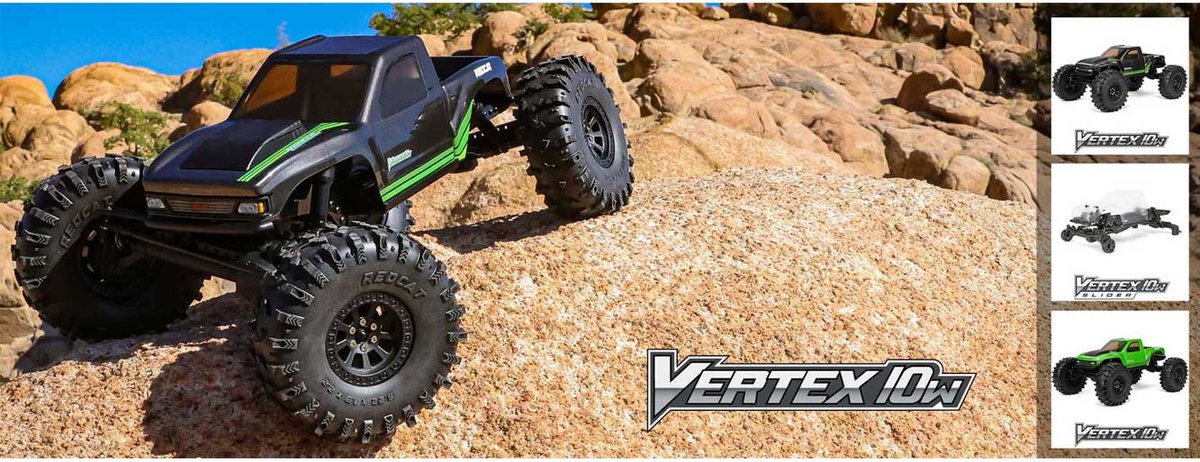

Vertex 10W (Wide) - Stability That Inspires Bold Driving

The Vertex 10 Wide expands the Vertex platform with a broader 228 mm stance and longer 330 mm wheelbase, delivering unmatched stability on steep climbs, loose rock, and off‑camber terrain. The 3 mm carbon‑fiber chassis pairs with a narrow aluminum skid plate and 74 mm of ground clearance, giving the crawler exceptional breakover capability.

Larger 5.25" tires on 2.2" beadlocks provide a commanding presence and improved rollover resistance. Air‑emulsion shocks with aluminum bodies and tuned spring rates (0.17 N/mm front, 0.2 N/mm rear) support the wider stance. The drivetrain’s 32 % overdrive (48.57:1 front / 66.79:1 rear) enhances climbing authority and steering control.

With double‑CV front shafts, a 58‑degree steering angle, and a rigid carbon backbone, the Vertex 10 Wide is built for drivers who attack bold lines and explore rugged terrain with confidence.

Vertex-10W: $529.99

Vertex 10W (Wide) Slider - Builder Freedom Meets Big‑Terrain Stability

The Vertex 10 Wide Slider takes the same builder‑ready concept and expands it for bold terrain. With its extended 228 mm stance, 330 mm wheelbase, and high‑clearance portal axles, it offers a planted, predictable feel on steep climbs and loose rock.

Constructed from 3 mm carbon fiber, the chassis supports rear shock towers, transmission end plates, and behind‑the‑axle servo mounts for maximum rigidity. Air‑emulsion aluminum shocks with 40 wt oil and tuned spring rates deliver balanced articulation. The drivetrain’s 32 % total overdrive and weighted metal front portal boxes enhance climbing traction and steering precision.

The lightweight cab‑only body reduces weight and improves balance, making the Wide Slider ideal for builders who want to customize their electronics and drivetrain for high‑risk terrain.

Vertex-10W: $399.99

Availability

All four models—the Vertex 10, Vertex 10 Wide, Vertex 10 Slider, and Vertex 10 Wide Slider—will launch simultaneously through Redcat authorized dealers and at RedcatRacing.com.
