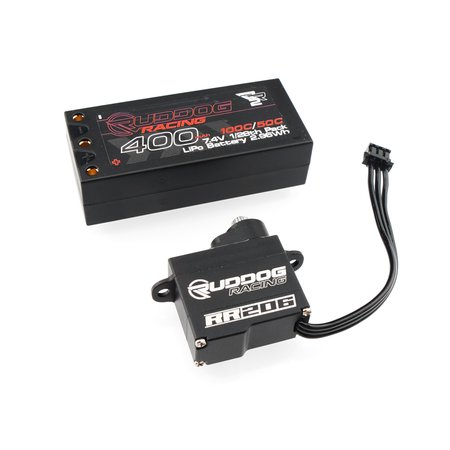

New Ruddog Racing 1/28th Scale Battery and Servo

Press Release From Ruddog Racing:
www.ruddog.eu

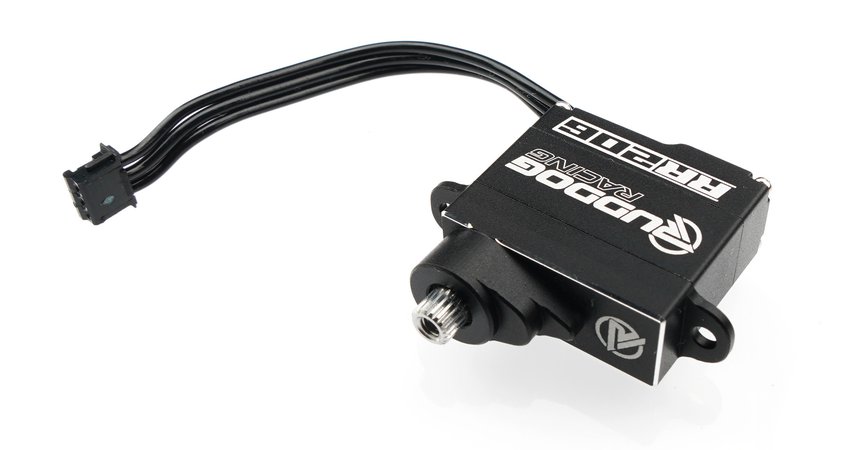

The RUDDOG Racing RR206 HV Coreless Micro Size Servo is a powerful solution for compact RC platforms such as the RC28R and RC10 Model 24. It has been specifically designed for micro-scale models and combines ultra-compact dimensions with high speed and reliable torque, making it ideal for precise steering inputs in tight spaces.

Thanks to its coreless motor technology, the RR206 delivers fast response times and exceptionally smooth operation with high efficiency. Its high-voltage capability allows operation up to 2S LiPo, unlocking full performance with a transit speed of just 0.056 seconds and up to 2.7 kg-cm of torque. A durable gear system ensures long service life even under demanding racing conditions. The compact and lightweight design makes installation in small vehicles easy while supporting optimal vehicle balance and precise handling.

FEATURES

• Ultra-compact design for 1:24 scale and similar micro vehicles
• High-voltage capable for direct 2S LiPo operation (6.0V – 8.4V)
• Coreless motor technology for fast response and high efficiency
• Durable precision gear system for reliable performance
• Ideal for models such as Team Associated RC28R and RC10 Model 24

Technical Data

• Operating voltage: 6.0V – 8.4V
• Torque: up to 2.7 kg-cm
• Speed: 0.056 sec/60°
• Motor type: Coreless
• Size: Micro size
• Application: 1:24, 1:27, 1:28 scale models and similar vehicles

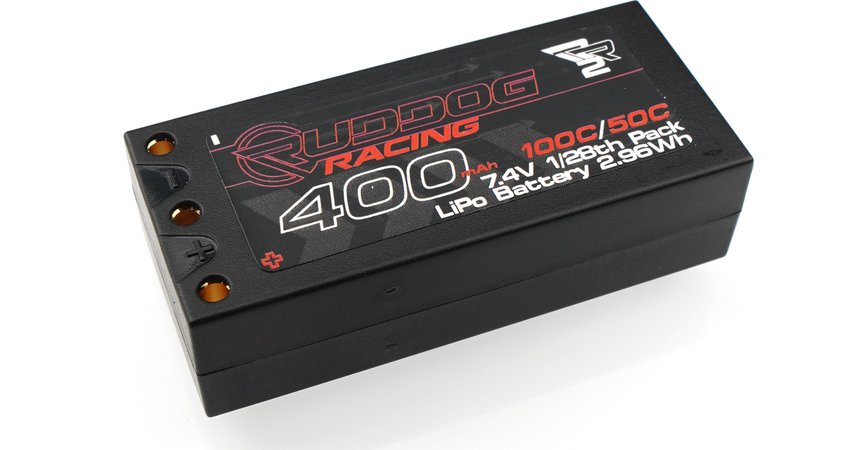

The RUDDOG Racing RR2 400mAh 7.4V LiPo battery is a compact and powerful 2S battery designed for small RC models. With dimensions of 44.5 x 20 x 12 mm and a low weight of only 17 g, it is perfectly suited for 1/28 and 1/24 scale vehicles such as the Team Associated RC28R and RC10 Model 24.

With a discharge rate of 100C/50C, this battery delivers strong power output and reliable performance for racing, practice sessions, and high-performance micro RC applications. Its compact size also allows use in many other 1/28 platforms, including chassis from PN Racing, Xbility, and other compatible brands.

FEATURES

• Compact 2S LiPo battery for 1/28 and 1/24 scale RC models
• Ideal for Team Associated RC28R and RC10 Model 24
• High discharge rate for strong acceleration and consistent power output
• Perfect for racing and performance-oriented micro RC applications

TECHNICAL DATA

• Capacity: 400mAh
• Voltage: 7.4V
• Cell configuration: 2S LiPo
• Discharge rate: 100C/50C
• Dimensions: 44.5 x 20 x 12 mm
• Weight: 17 g
• Connector: 2 mm
• Application: 1/28 and 1/24 scale RC models
