New JConcepts 13mm BK Piston Options

Press Release From JConcepts:
www.jconcepts.net

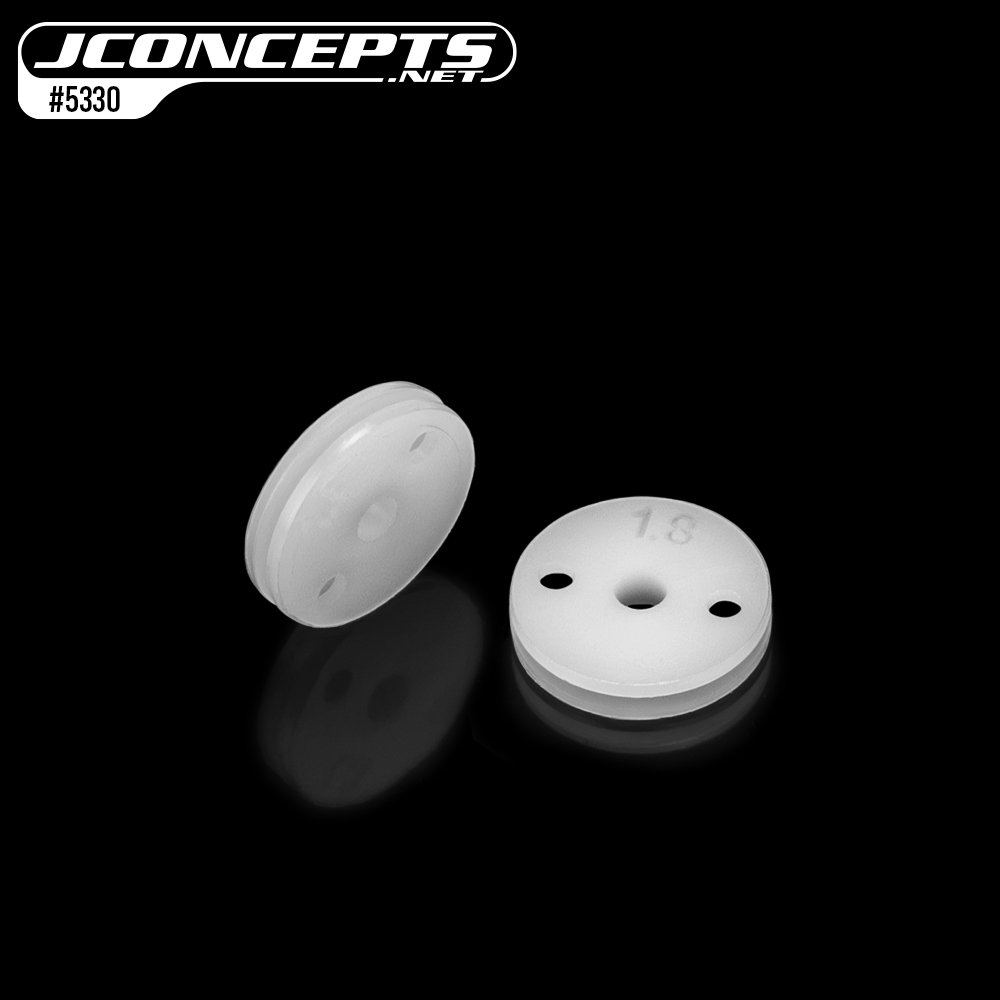

A project from the man himself has now appeared as an option for 13mm shocks. The BK piston, machined in low friction Delrin material has opened a can of goodness racers have only heard about, until now. The prototype slotted piston, machined by BK using equipment purchased exclusively for the master of all RC trades, was for sure a late-night project. During 2016, finding grip with newly released mid-motor vehicles was a vicious hunt for low-traction dirt conditions.

As track conditions advanced, finding grip wasn’t necessarily as high a priority, hence the delay in the BK piston introduction. However, as the hands of time move forward, vehicles are once again looking for an edge in grip handling due to their advanced corning abilities. The all-precision machined item has the makings of the latest winner from the JConcepts Speed Laboratory and can be tuned by the user. The latest BK pistons arrive with plenty of pre-drilled combinations.

Notes from the team: Test drivers have reported increased vehicle grip while utilizing the exclusive design. The BK channel in the piston increases the volume of oil in the shock body acting as another chamber in the shock body to add consistency to the mechanism. During compression and rebound, a lot of disturbance is created inside the working area of the shock. The action of a traditional piston is very top to bottom with pass-through only allowed through dedicated holes and around the perimeter due to blow-by.  With this design, the piston is passing fluid through 2 separate channeled sections while the entire disturbance area rests in oil which helps compartmentalize all activity.

In testing, this has translated into consistent handling, more overall grip, while the vehicle seems to act more with the track surface, rather than against it. Driving with a lower ride-height always helps cornering ability and stability, however, the adverse effect is handling over uneven terrain. With the BK piston the vehicle seems to perform better at low ride-height while still handling individual bumps and deflections that vehicles undergo during hard sweep cornering.

Options available:

5327     JConcepts - 13mm shock pistons, BK design 2 x 1.5mm

5328     JConcepts - 13mm shock pistons, BK design 2 x 1.6mm

5329     JConcepts - 13mm shock pistons, BK design 2 x 1.7mm

5330     JConcepts - 13mm shock pistons, BK design 2 x 1.8mm

5331     JConcepts - 13mm shock pistons, BK design 2 x 1.9mm

5332     JConcepts - 13mm shock pistons, BK design 2 x 2.0mm

5333     JConcepts - 13mm shock pistons, BK design 3 x 1.5mm

5334     JConcepts - 13mm shock pistons, BK design 3 x 1.6mm

5335     JConcepts - 13mm shock pistons, BK design 3 x 1.7mm

Features:

• Machined Delrin material
• BK, channeled design
• Pre-drilled options for simplicity
• Tight tolerances, less blow-by
