New Ruddog Racing RXB Blinky Speed Control

Press Release From Ruddog Racing:
www.ruddog.eu

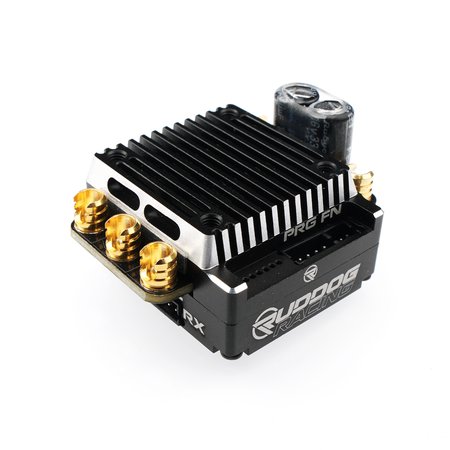

The RUDDOG Racing RXB starts with a new connector and case layout that makes clean builds effortless. Side-mounted solder posts, a front sensor port, and integrated capacitors reduce wire length and clutter for lower resistance and better reliability. On track, the RXB delivers a precise throttle feel and linear braking in a compact 28g package. Its adjustable RPM limit lets clubs and event organizers define a single spec for different motors, turning the RXB into a true control ESC for fair and comparable racing. Reverse polarity protection adds an extra layer of safety, while the adjustable 6.0 to 7.4 V BEC supports both standard and HV servos.

Features

• Clean wiring concept with side solder posts
• Integrated capacitors
• Adjustable RPM limit for spec racing with LED color status
• Smooth throttle response and consistent, linear braking
• Reverse polarity protection
• Stock-oriented firmware with blinky mode
• Adjustable BEC 6.0 to 7.4 V
• Compact CNC aluminum case, only 28 g
• Includes cooling fan and accessories

Technical Data

• Continuous current: 100 A
• BEC output: 6.0 | 7.4 V adjustable
• Motor limit: 10.5T
• Dimensions: 31.5x39.7x16 mm
• Weight: 28g
• Capacitors: integrated
• RPM limit: adjustable with LED indication

RPM Limit

The RXB lets you set an RPM limit according to the motor’s turn rating. If a class runs 17.5T motors and the RXB is used as a handout or one-make ESC, you can set the RPM limit as mandatory. This is then shown by an additional color LED while the blue LED continues to blink.

• 10.5T: red
• 13.5T: green
• 17.5T: white
• 21.5T: orange

This function can be disabled, so the ESC can be used without an RPM limit. It was designed specifically for one-make series.
