New Ruddog RPS Power Supply

New Products

ADVERTISEMENT | ADVERTISE WITH US



Press Release From Ruddog:
www.ruddog.eu

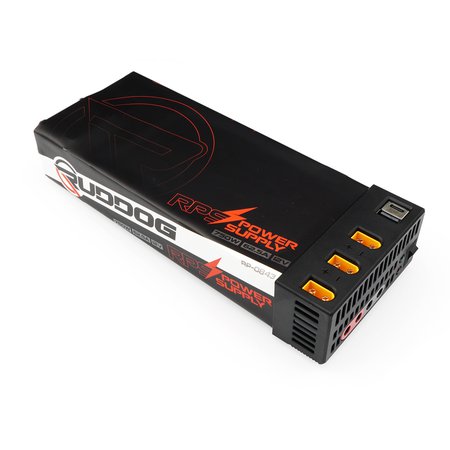

The RUDDOG RPS Power Supply delivers up to 750W at 12V and provides a continuous current of up to 62.5A, giving modern multi channel chargers and high power pit setups a stable and reliable energy source. With three XT60 outputs, two classic 4 mm banana socket pairs as well as one USB A and one USB C port, it offers a versatile connection hub for chargers, fans, LED lighting and mobile devices. Intelligent fan control and extensive protection circuitry ensure safe and comparatively quiet operation, while the wide range 100 to 240V AC input makes it suitable for use at home, at the club and on international race trips. Compact dimensions and the robust housing make the RUDDOG RPS Power Supply an ideal choice for ambitious hobbyists and racers who need a powerful yet portable solution.

Features

  • Up to 750W continuous output power at 12V
  • Up to 62.5A continuous current for demanding high power chargers

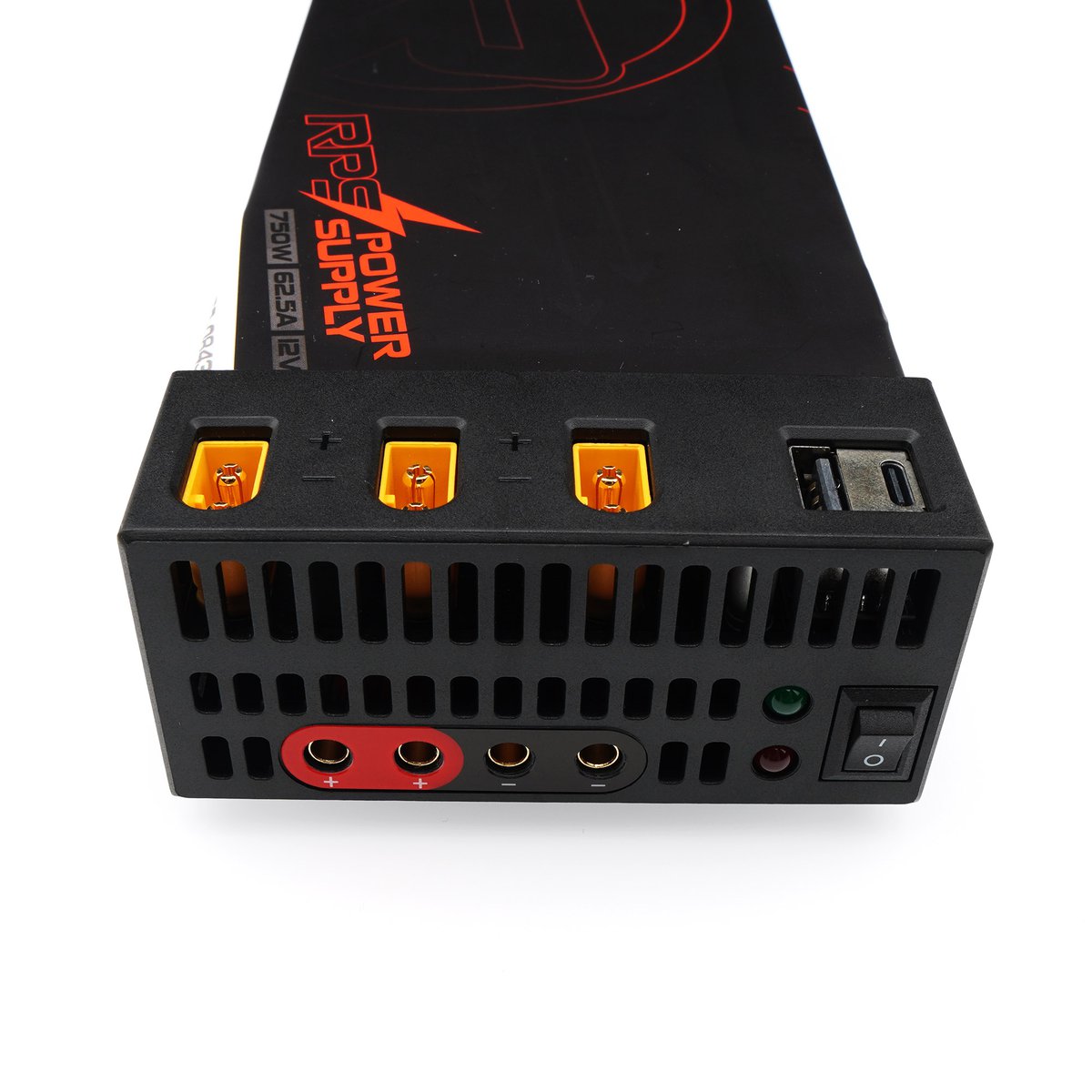

  • Three XT60 outputs and two 4 mm banana socket pairs for flexible connections
  • USB C (PD) and USB A (QC) ports for fast charging of phones and accessories
  • Intelligent, temperature controlled cooling fan for efficient and quiet operation
  • Multiple protection circuits for short circuit, overcurrent, overtemperature, overload and overvoltage
  • Wide range 100 to 240V AC input for worldwide use
  • Compact housing for mobile pit use

Technical data

  • Input voltage: AC 100 to 240V, 50/60 Hz
  • Maximum input current: up to 10.0A AC
  • Output voltage: 12V DC fixed
  • Maximum output power: 750W
  • Maximum output current: 62.5A
  • XT60 outputs: 12V DC, up to 30A total
  • 4 mm banana outputs: 12V DC, up to 30A total
  • USB C (PD 3.0): 5V / 9V at 3A, 12V at 2.5A, up to 30W
  • USB A (QC 2.0): 5V / 9V at 3A, 12V at 2.5A, up to 30W
  • Cooling: temperature controlled fan
  • Protection: short circuit, overcurrent, overtemperature, overload, overvoltage
  • Operating temperature range: approx. −10 to 40 °C
  • Dimensions: approx. 227 × 90.2 × 42.4 mm
  • Weight: approx. 1050 g
