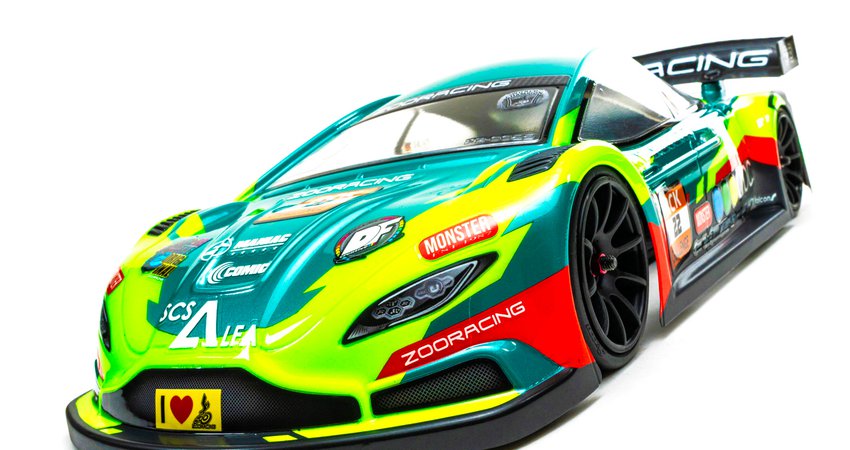

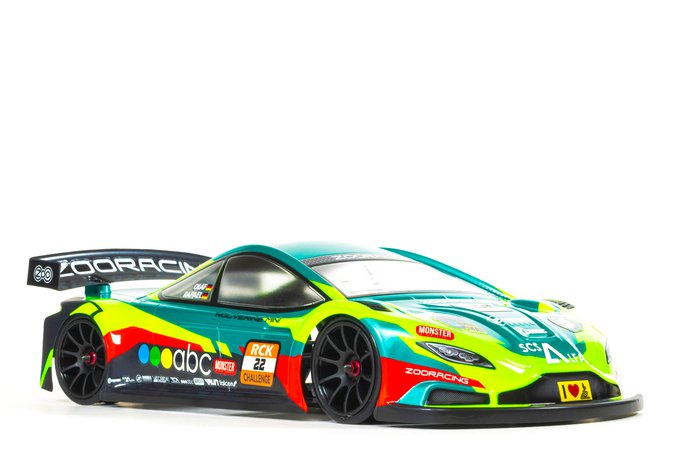

New Zoo Racing Mini Wolverine M-Chassis Body

Press Release From ZooRacing:
www.zoo-racing.com

WOLVERINE MINI is ZooRacing’s newest high-performance body on the market. It’s been designed with our newest insights in mind to make WOLVERINE MINI even faster on every track, compared to its predecessors. Lots of new features improved the handling, making it more dynamic. More contact pressure offers more stability in corners with lots more rotation. The aerodynamic efficiency has been improved again as well.

For this purpose, we’ve advanced lots of areas of WOLVERINE MINI noticeable. The overall length has been shortened to achieve a lesser inertia and therefore a better rotation around the vertical axis. For more steering in fast corners we’ve redesigned the front and hood and made them steeper. To easier steer the airflow along the sides over the rear wheel arches to the rear wing, to create more downforce, we’ve tailored WOLVERINE MINI’s sides a lot. The rear is designed very even and uniform for a low center of gravity and to ensure an easy airflow to the wing. For a consistent flow we’ve remodeled the rear fenders to minimize turbulences at the rear of the body.

For a better aerodynamic efficiency we’ve elongated the roof of WOLVERINE MINI. For the first time the windows at the side have an arch build in, to even out the pressure ratio of the airflow. With the rear wing we’ve included a know one, the HELLCAT wing, and improved it even further. The wing is known for its bowed form, which fits perfectly on the bodies rear and has an extreme impact. For more structural stability and more downforce on fast tracks, we’ve included a highly efficient reinforcement rib.

Especially the 0,5mm ultralight version needs a high rigidity. To achieve that we’ve created many new features. We’ve redesigned the area in front of the window shield to create more stiffness. The front fenders got a unique structure build in to prevent deflection at high speeds and accomplish overall more efficiency.​

The Wolverine MINI body shell comes moulded from high-quality 0.5mm and 0.7mm and extra strong 1.0mm ZHD polycarbonate and uses ZooRacing‘s ZOOlite moulding process. Part of the package are window masks in a new more flexible and stickier quality, that will ensure window frames of pro quality. The body package is topped of by high-quality wing mounting hardware and a highly detailed sticker sheet including grill, head and tail lights.

Features:

– CAD designed
– Specialised FWD and 4WD body shell with balanced front-to-rear downforce

– Designed for M-Chassis with 225mm wheelbase only!
– Low-profile design for highest top speeds and corner speeds
– Large wheel arches allow the body to be placed forth or back to fine-tune aerodynamics
– Large wheel arches ensure the tyres will not rub in whatever position

– The 0.5mm ULTRAlight body weighs in at 55g race-ready

– The 0.7mm ZOOlite body weighs in at 65g race-ready

– The 1.0mm ZHD body weighs in at 75g race-ready
– Detailed decal sheet
– Wing mounting hardware
