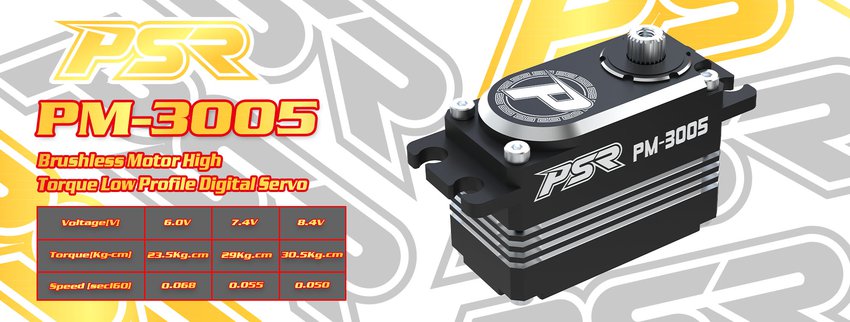

New Powerstar PM-3005 Brushless High Torque Low Profile Servo

Press Release From Powerstar:
www.powerstar-racing.com

Powerstar has released their newest servo product, PM-3005, a Brushless Motor High Torque programmable Digital Low Profile Servo. It's designed specifically for 1/10 scale off-road cars, allow fine-tuning of settings to match track conditions and provide greater accuracy and faster response, using a powerful brushless motor, all-steel gears, and an all aluminum case. It provides precise control and reliable performance. Operating Voltage 6.0V-8.4V. At 8.4V input, the servo pulls up to 30.5kg-cm of torque at a speed of 0.05s.

Features:

• High efficiency Brushless motor, stable performance.
• High precision potentiometer.
• Precise control movement.
• All Aluminum Shell.
• Programmable Servo
• Application for RC car, RC Boat, RC plane,RC Helicopter.

Specifications:

Torque(6.0V): 23.5 kg-cm/325 oz-in
Torque(7.4V): 29kg-cm/400 oz-in
Torque(8.4V): 30.5 kg-cm/415 oz-in
Speed: 0.068 sec (6.0V)│0.055sec(7.4V)│0.05sec(8.4V)
Operating Voltage：6.0V ~ 8.4V
Weight: 59.1g
Bearing Type: Metal Bearing
Motor Type：Brushless
Gear Type：Steel
Output Gear: 25T
Waterproof: IP65
Case: All Aluminum Shell
Operating Temperature：-20℃~60℃
Working Frequency：1520μs / 333hz
Size：40.8x20.2x30.0 mm
Wire gauge: #22 AWG
Wire Length: 110mm
